My version of a "sawdust toilet" (as described in the Humanure Handbook) consists of a receptacle bucket, a removable toilet seat that slips into the top, and a bucket of sawdust for covering after each use. When the toilet is full the seat is switched to the empty sawdust bucket. The toilet is emptied, cleaned and sanitized and then becomes the sawdust bucket after filling with clean sawdust. The whole toilet system, including outdoor compost chamber, can be constructed for less than $10. This simple, inexpensive, and hygienic toilet -- affordable to construct and maintain by just about anyone on the planet -- is a perfect example of an appropriate and sustainable technology.

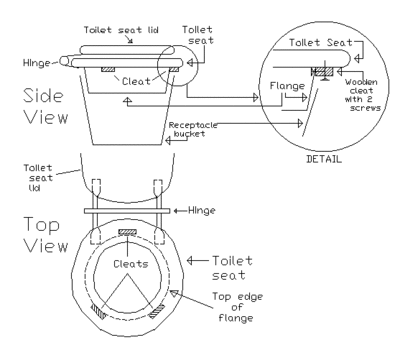

- Using a wood saw, cut the top 4 to 6 inches off one of the buckets. This will serve as a flange to which a toilet seat is attached, allowing it to slip inside a second bucket. The bottom part of the cut bucket can be recycled, for example as a planter. How it goes together
- Attach this flange to the bottom of a toilet seat using two screws at each of three wood cleats. One screw attaches the cleat to the toilet seat; the second attaches the bucket flange to the cleat. The four small brown objects in the photo, the original toilet seat spacers, are removed and discarded. The completed receptacle with flanged seat in place on a receptacle bucket is shown at the top of this page.
- A second bucket contains sawdust, chipped wood, chopped straw, cereal hulls, or other absorbent carbon-rich organic matter. Covering with several cups or handfuls of this matter after each use effectively prevents odors.
- When the receptacle bucket is full transfer the flanged toilet seat to the now empty sawdust bucket which then becomes the receptacle. Covering with organic material
- Empty the toilet contents into a composting chamber and cover with a fresh layer of sawdust to prevent odors and present an aesthetic appearance. Clean the empty receptacle and sanitize and freshen in sunlight. This bucket, after filling with clean material, then becomes the sawdust bucket, and the cycle starts over. This step is the only time when odors are present, and only momentarily. Although not necessary, some individuals collect urine separately in a sealable container (such as an inexpensive but sturdy plastic bottle) because of its high value as a nitrogen source. It can be diluted by 5 parts water and put directly on plants.
